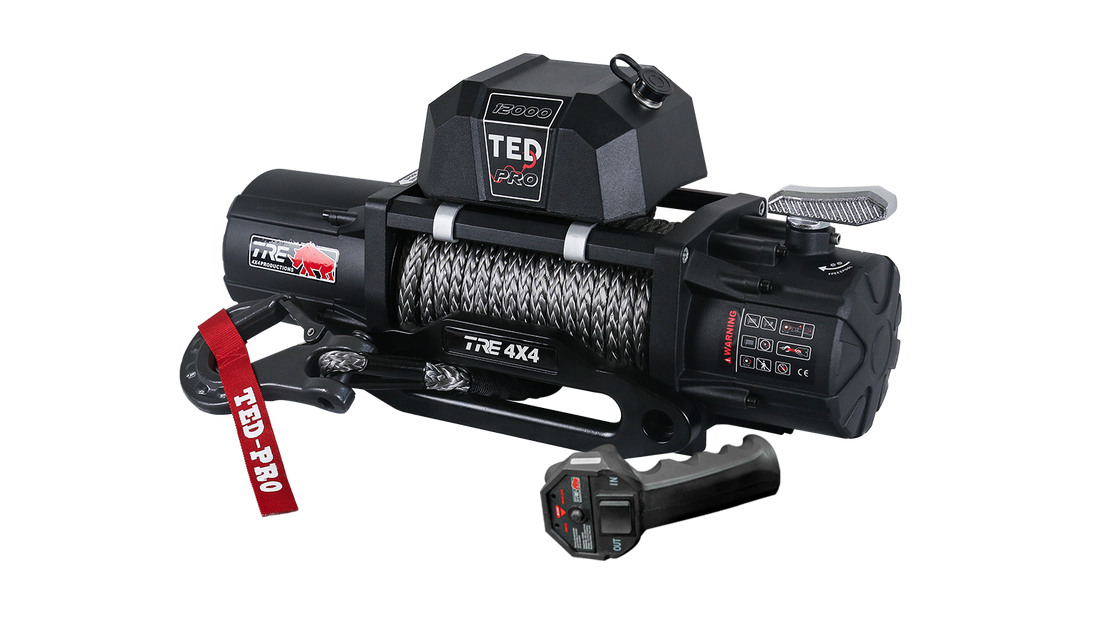

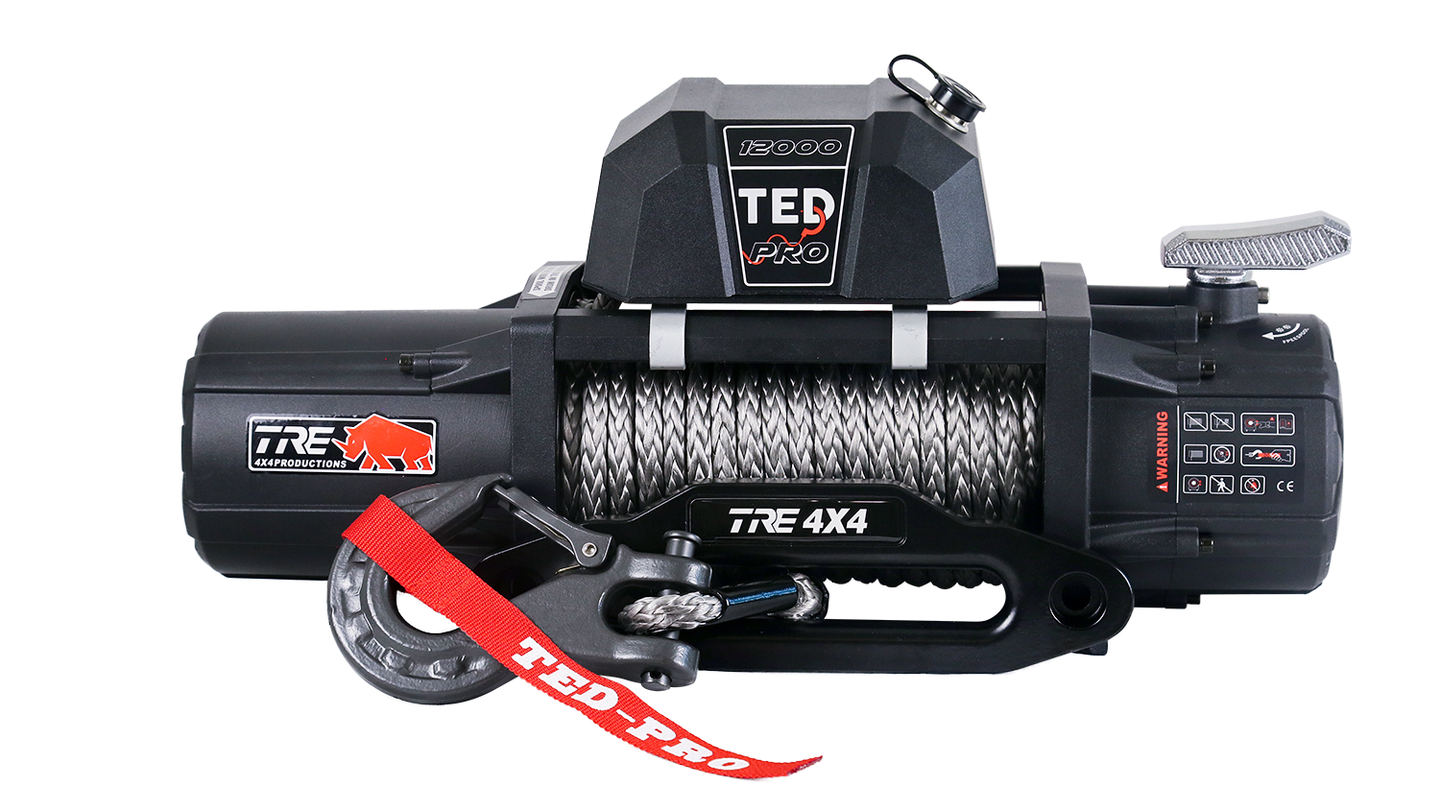

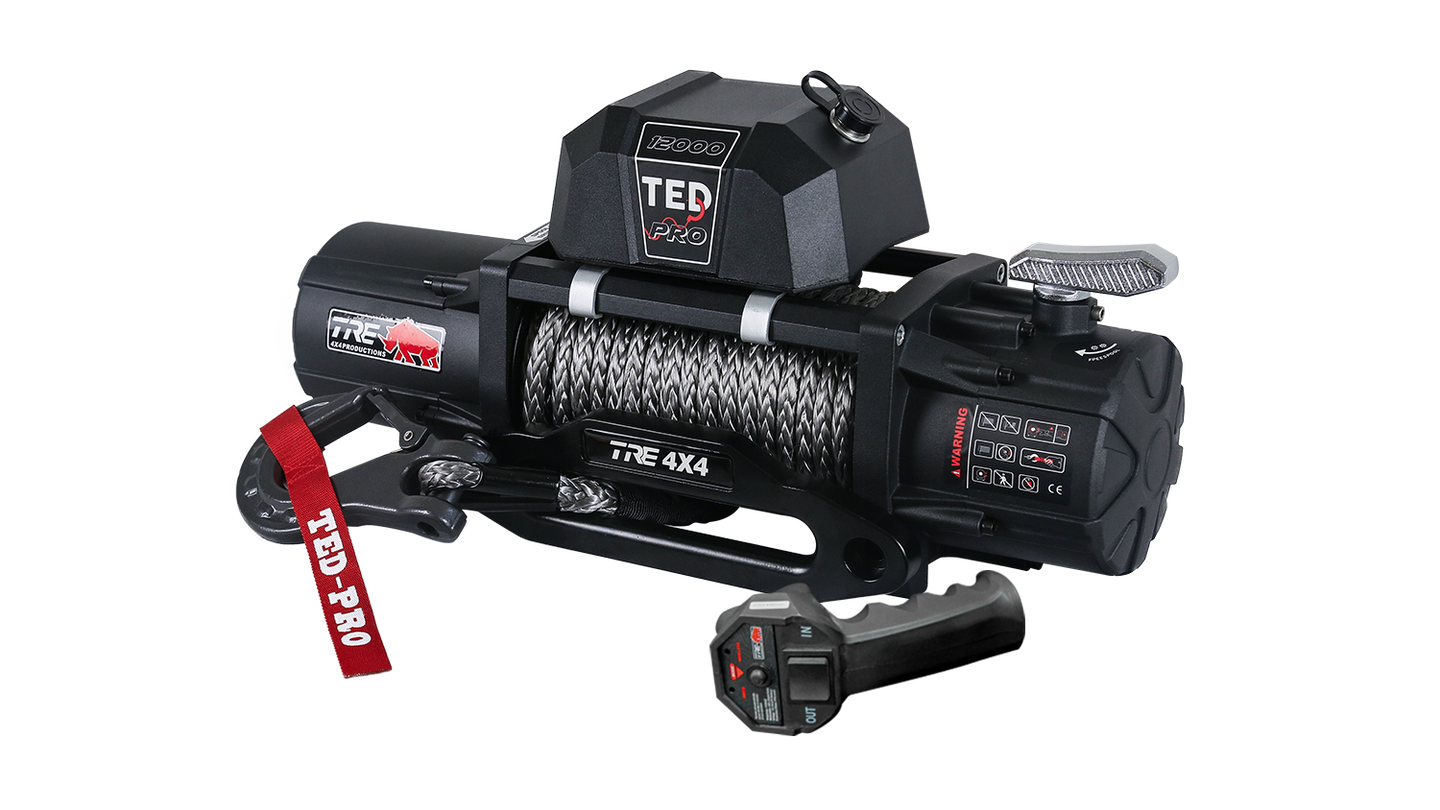

The TED PRO 12,000LBS. 12 Volt DC Electric Truck Winch has a cable tensloner to prevent cable tangling.
The series-wound motor stays cooler during long puls. The three-stage planetary gear system provides fast line speed. The automatic load-holding brake insures maximum safety. The free spooling provides a fast line out while the 12 ft. ergonomic handheld remote control. The winch contains a roler fairlead with nylon bushing and an aircraft-grade wire rope
12000 LBS
Rated Single Line Pull : 12000lbs (5454kgs)
Application : Vehicle Recovery/ For Trucks and SUVs
Motor : 7.0hp/5.2kw, series wound
Motor : 7.0hp/5.2kw, series wound
Power In & Power Out : Yes
Duty Cycle Rating : 5% (45 sec at Max Rated Load;14min, 15 sec Rest)
Pendant Controller : Wired, 12 ft (3.7m) Long
Gear train : 3 stage planetary
Gear ratio : 236:1
Gear train : 3 stage planetary
Gear ratio : 236:1
Freespool : Sliding Ring Gear
Brake : Auto Load Holding
Brake : Auto Load Holding
Drum (Dia. XL) : Diamater 2.5''(63.5mm) x length 9.6''(224mm)
Clevis Hook : 3/8'', REPLACEABLEWITH SPRING - LOADED SAFETY LATCH
Fairlead : Roller with Nylon bushings
Wire Rope Size/Type : 0.375" x 85.3" (9.5mm x 26m)
Nominal Strength=14,000 lb.
7 X 19 Galvanized Steel
Aircraft Wire Rope
Battery : 12v DC Minimum 650 CCA
Battery Cables : Min. 3.5 Gauge
Mounting Bolt Pattern : 10" x 4.5' (254mm x 114.3mm)
Mounting Hardware : Winch: 4xG8, M12-1.75x25mm
Wire Rope Size/Type : 0.375" x 85.3" (9.5mm x 26m)
Nominal Strength=14,000 lb.
7 X 19 Galvanized Steel
Aircraft Wire Rope
Battery : 12v DC Minimum 650 CCA
Battery Cables : Min. 3.5 Gauge
Mounting Bolt Pattern : 10" x 4.5' (254mm x 114.3mm)
Mounting Hardware : Winch: 4xG8, M12-1.75x25mm
Fairlead: 2xG8, M10-1.50x30mm
Solenoid Box: 2xG8, ST-M5x14mm
Overload Protection : Inline Circuit Breaker
Sound Rating : 85dB
Overall Dimensions (LXDXH) : 21''x6.4''x8.3''
Weight : 40kgs
IP Rating : IP68-Winch and Controls (resistant to powerful water jets, except remote control switch)
Overload Protection : Inline Circuit Breaker
Sound Rating : 85dB
Overall Dimensions (LXDXH) : 21''x6.4''x8.3''
Weight : 40kgs
IP Rating : IP68-Winch and Controls (resistant to powerful water jets, except remote control switch)
